Remarks:
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
- 6 M20 threaded membrane entries
- 2 membrane cable entries through rear
- 4 captive cover screws
Fixing:
With 4 internal openings outside of the sealing area
| Material |
Polypropylene |
| Material sealing gasket |
TPE |
| Temp. range min |
-30 °C |
| Temp. range max |
100 °C |
| Temperatures during install. |
-5 °C - 60 °C |
| Protection class |
IP66 / IP67 |
| Glow wire test |
750 °C |
| Voltage |
400 V |
| Rated cross section |
1,5 mm² |
| Fixing |
4 internal openings |
| Ø cable diameter min |
3 mm |
| Ø cable diameter max |
12 mm |
| External dimensions LxWxH |
85 x 49 x 51mm |
| Using for cable gland |
 |
| Product Color |
RAL 7035 |
| Order no. RAL 7035 |
10109569 |
| Type |

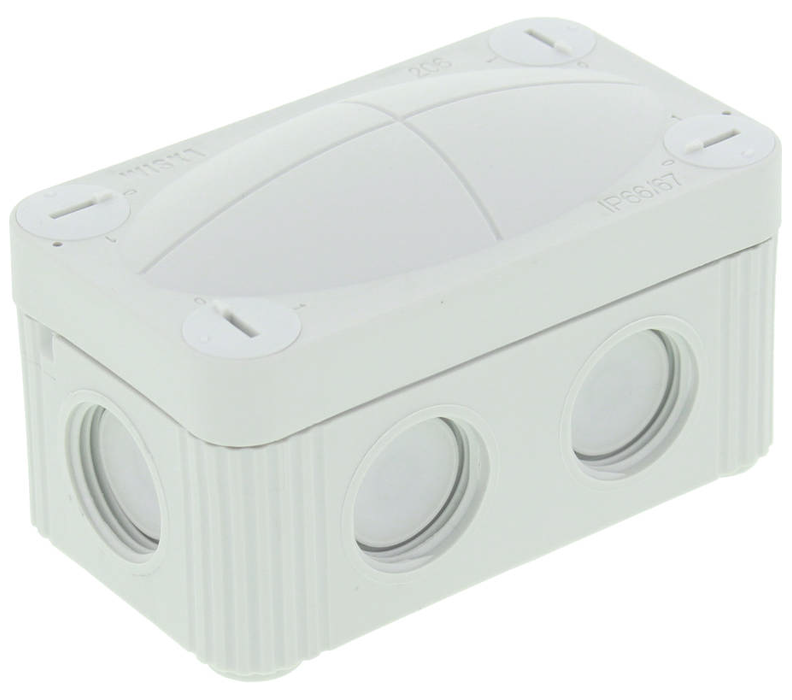

COMBI 206 LG |
| Packing unit |
10 |
| ETIM-Classification |
EC002600 |
