Remarks:
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
- 6 M20 threaded membrane entries
- 2 membrane cable entries through rear
- 4 captive cover screws
Fixing:
With 4 internal openings outside of the sealing area
Material | Polypropylene |
Material sealing gasket | TPE |
Temp. range min | -30 °C |
Temp. range max | 100 °C |
Temperatures during install. | -5 °C - 60 °C |
Protection class | IP66 / IP67 |
Glow wire test | 750 °C |
Voltage | 400 V |
Rated cross section | 1,5 mm² |
Fixing | 4 internal openings |
Ø cable diameter min | 3 mm |
Ø cable diameter max | 12 mm |
External dimensions LxWxH | 85 x 49 x 51mm |
Using for cable gland | |
Product Color | RAL 9005 |
Order no. RAL 9005 | 10109571 |

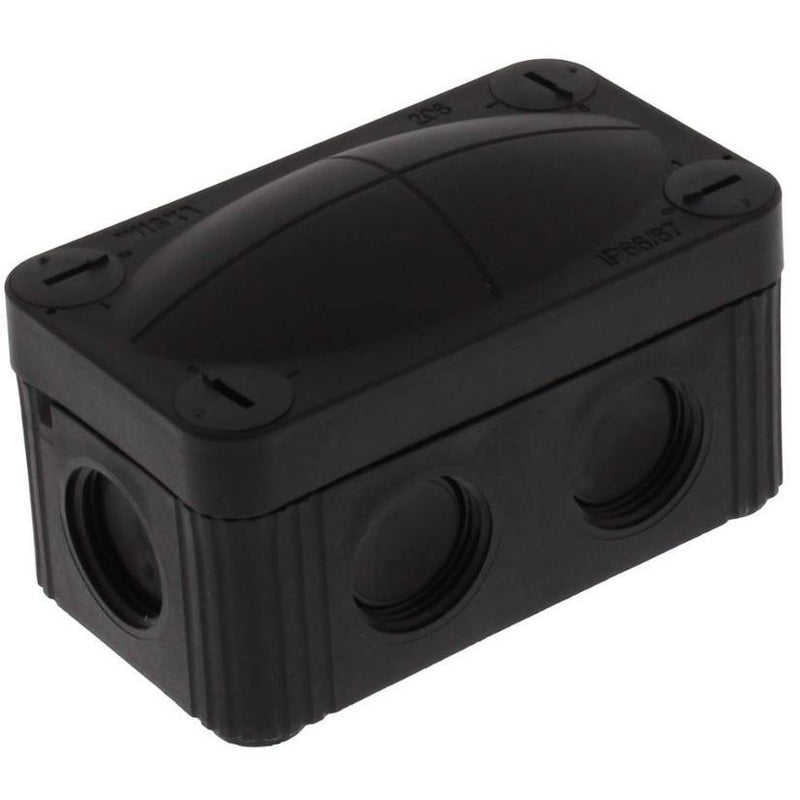

Type | COMBI 206 BK |
Packing unit | 10 |
ETIM-Classification | EC002600 |
