Wylex Metal 8 Way Consumer Unit 100A C/W/ SPD

Wylex Metal 8 Way Consumer Unit 100A C/W/ SPD

Wylex Metal 8 Way Consumer Unit 100A C/W/ SPD

by Wylex
SKU NM806LSPD
£68.95

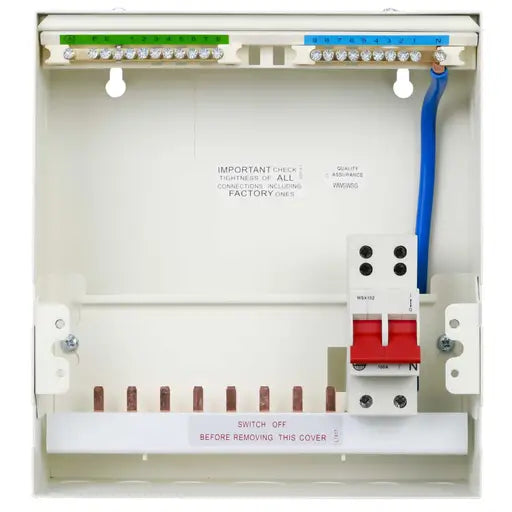

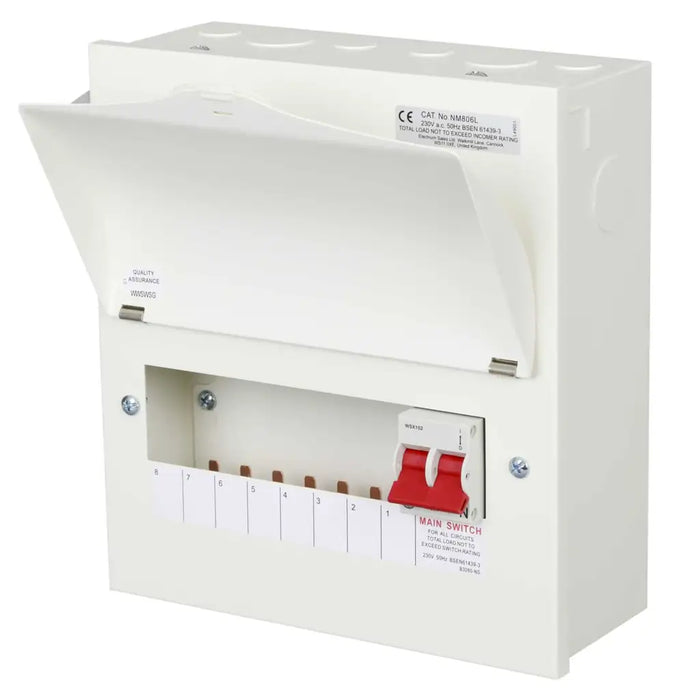

The NM806LSPD is a 8W Main switch only consumer unit. It includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly.
Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs.
Compatible with the Wylex miniature type 2 SPD, NMT2SPD3W/1.
Constructed from a full metal enclosure with curved visor and temporary locking facility.


-100A incoming isolator fitted
-Amendment 3 compliant
-Non-combustible enclosure

Specifications:

Brand Wylex
Compliance BSEN61439-3
Current Rating 100A
Depth 121mm
Dimensions (H)261mm (W)241mm (D)121mm
Guarantee 1 Year
Height 261mm
Incoming Device 100A Isolator
Material Metal
Mounting Surface
Number of Modules 10
Number of Outgoing Ways 8
Packaging Types Each
Product Range NM Metal
Surge Protection Fitted No
Surge Protection Ready No
Unspsc V18 39121110
Voltage Rating 230V
Weight 3.7kg
Width 241mm
