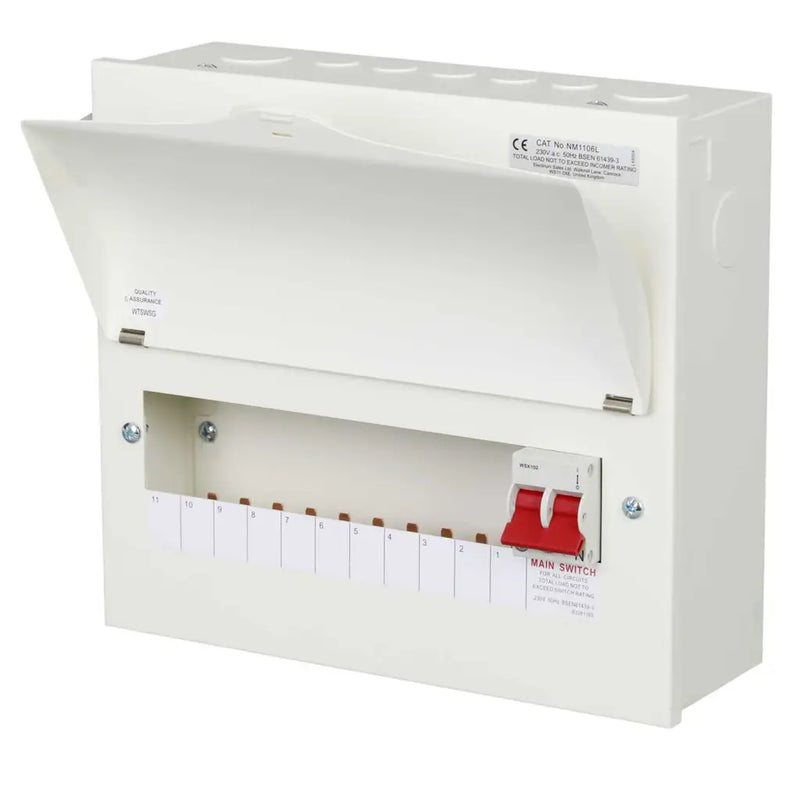

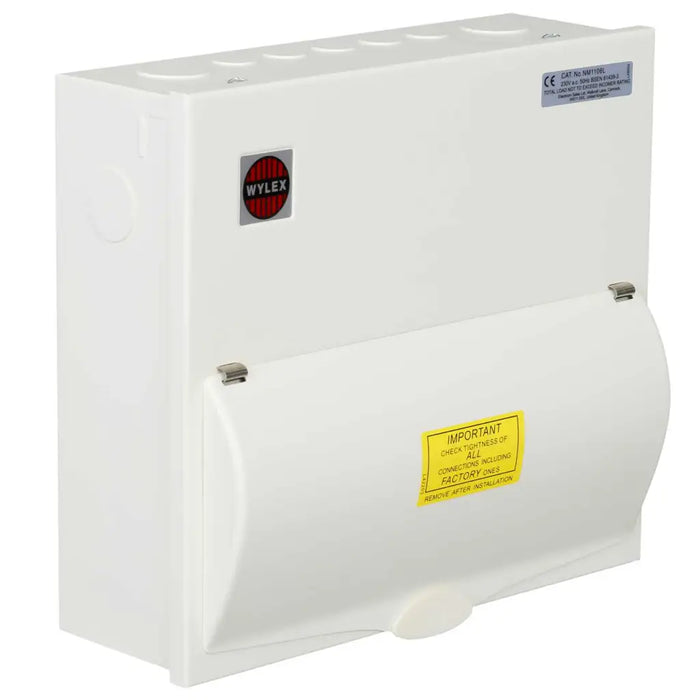

Wylex Metal 11 Way Consumer Unit 100A C/W/ SPD

Wylex Metal 11 Way Consumer Unit 100A C/W/ SPD

Wylex Metal 11 Way Consumer Unit 100A C/W/ SPD

by Wylex
SKU NM1106LSPD
£69.95

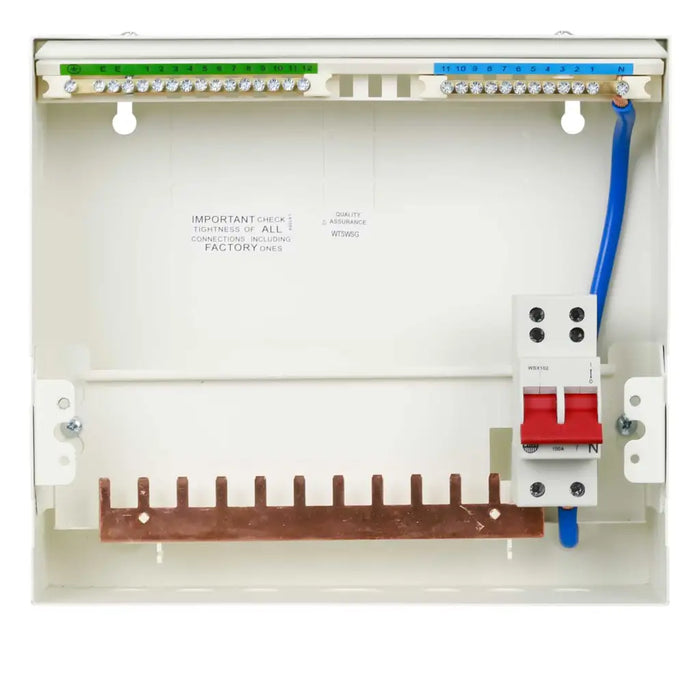

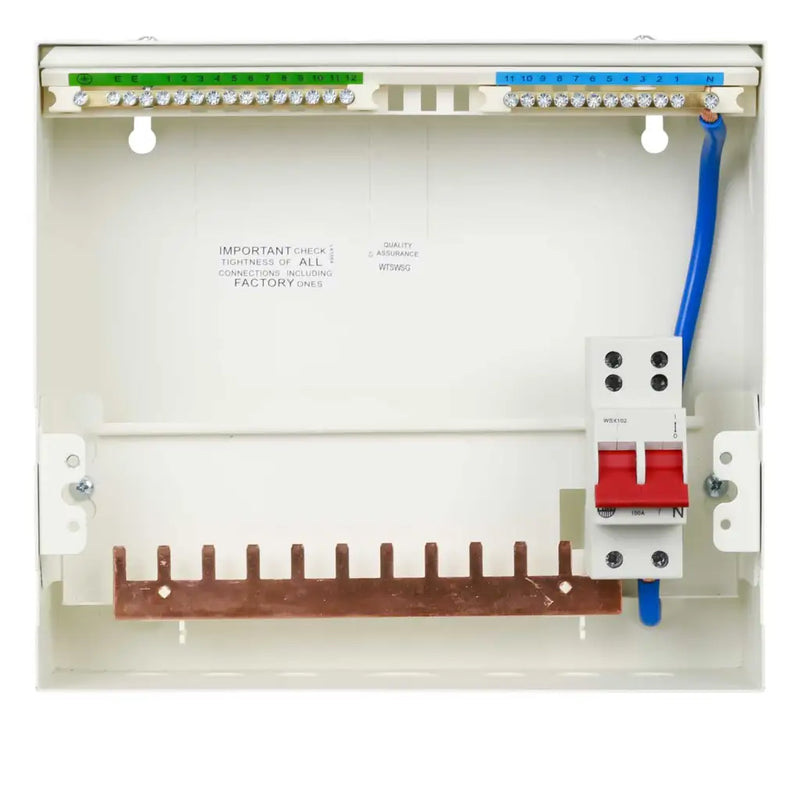

The NM1106L is a 11W main switch only consumer unit. It Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly.

Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs.

Compatible with the Wylex miniature type 2 SPD, NMT2SPD3W/1.

Constructed from a full metal enclosure with curved visor and temporary locking facility.

-100A incoming isolator fitted
-Amendment 3 compliant
-Non-combustible enclosure

Specifications:

Brand Wylex
Compliance BSEN61439-3
Current Rating 100A
Depth 121mm
Dimensions (H)261mm (W)292mm (D)121mm
Guarantee 1 Year
Height 261mm
IP Rating IPX2
Incoming Device 100A Isolator
Material Metal
Mounting Surface
Number of Modules 13
Number of Outgoing Ways 11
Packaging Types Each
Product Range NM Metal
Surge Protection Fitted No
Surge Protection Ready No
Unspsc V18 39121110
Voltage Rating 230V
Weight 3.7kg
Width 292mm
