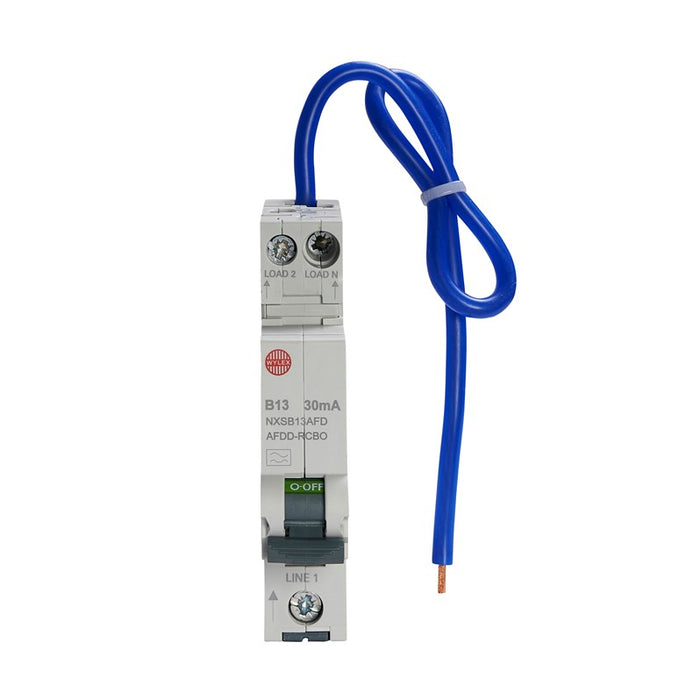

Wylex NXSB13AFD RCBO/AFDD 1MW 1P+SWN

by Wylex
SKU NXSB13AFD
£82.75
Original price £82.75 - Original price £82.75
Original price
£82.75 - £82.75
Current price £82.75

Single module, Miniature Bi-Directional AFDD RCBO combined. 13A B curve (MCB), 30mA Type A (RCD). Single pole with switched neutral. No miss busbar connection. Fits NM & NMX consumer units and NH L range Distribution Boards.

-Fits all new and existing installations and combines 3 technologies
-AFDD technology automatically disconnects dangerous electrical arcs that can cause fires
-MCB technology prevents overload currents and overheating
-RCD technology which prevents electrical shocks
-All in one single compact module

Specifications:

Brand Wylex
Current Rating 13A
Depth 77mm
Dimensions (H)90 mm x (W)18 mm x (D)77 mm
Frequency 50Hz
Guarantee 1 Year
Height 90mm
IP Rating IP20
Mounting DIN Rail
Number or Modules 1
Number of Poles Single Pole and Neutral
Outgoing Terminal Capacity 16mm²
Packaging Types Each
Product Range NXS
RCD Type A
Short Circuit Rating 6kA
Standards IEC 61009-1, BS EN 62606
Tripping Characteristics B Curve
Tripping Sensitivity 30mA
Unspsc V18 39121601
Voltage Rating 230V
Weight 0.14kg
Width 18mm
