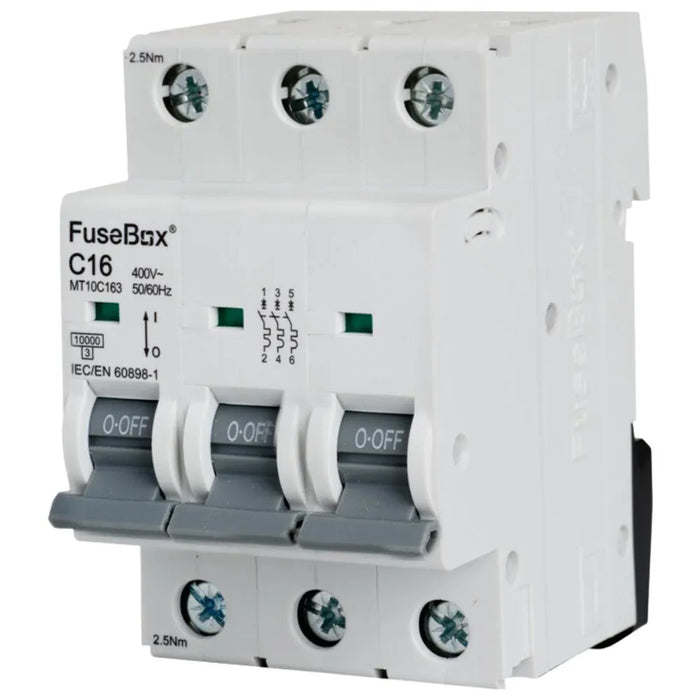

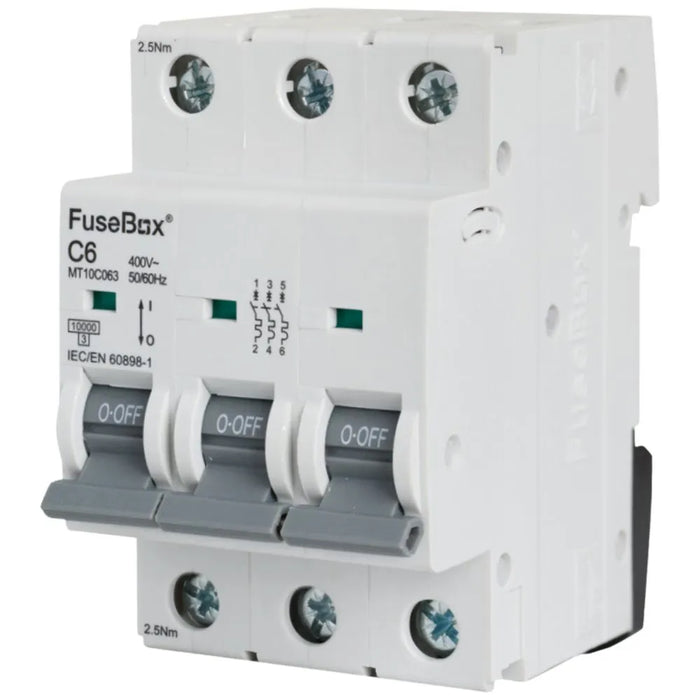

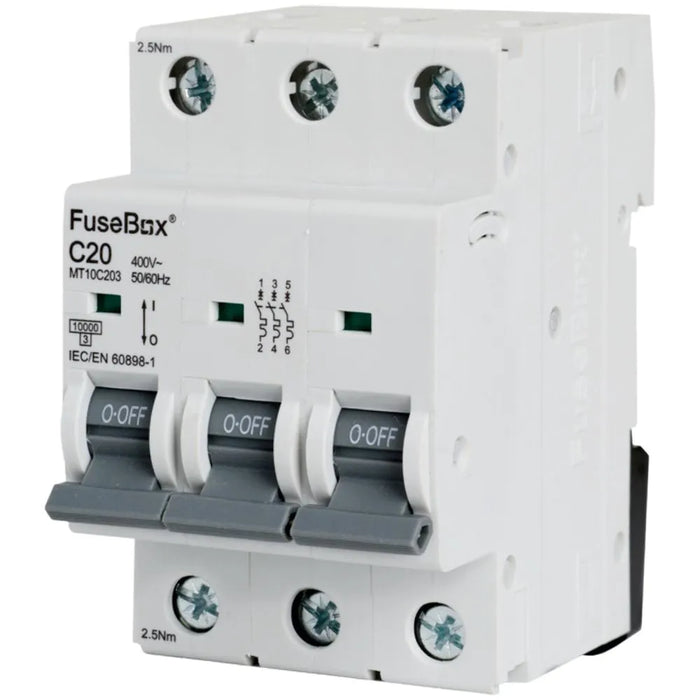

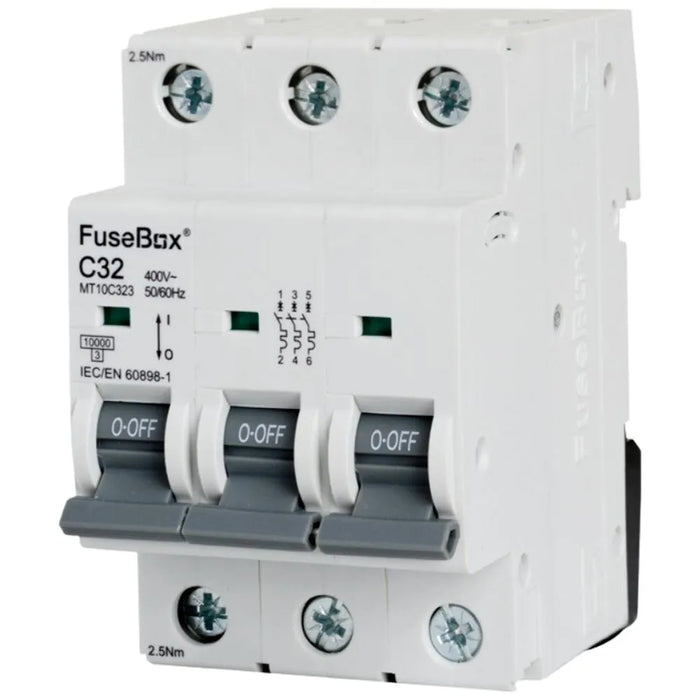

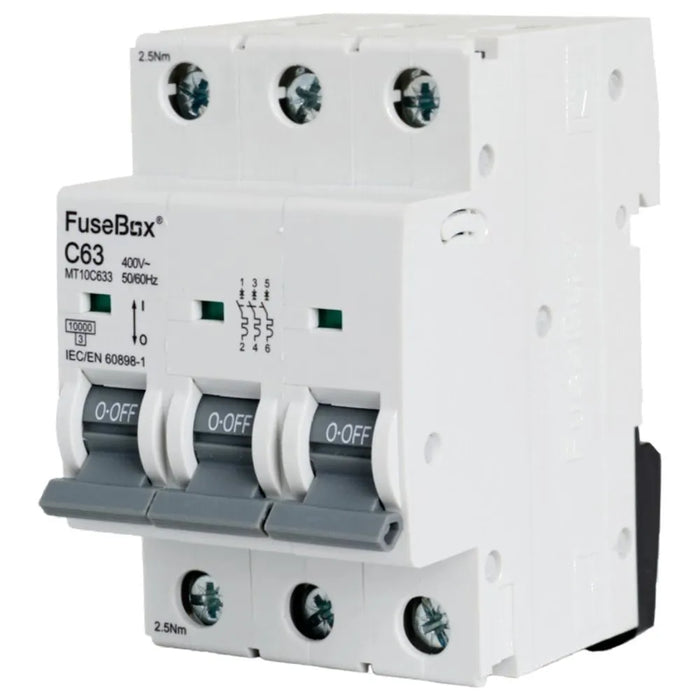

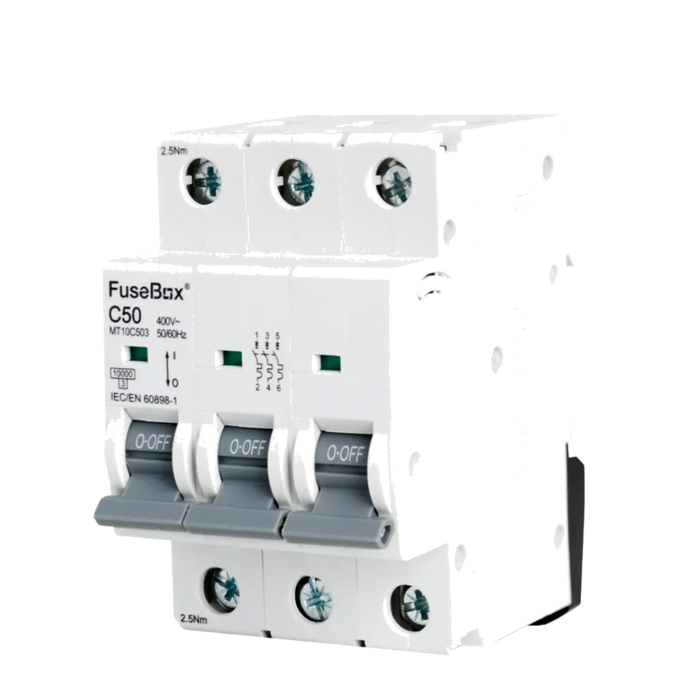

Fusebox Triple Pole MCB Type C, Curve B | (06A-63A)

Fusebox Triple Pole MCB Type C, Curve B | (06A-63A)

Fusebox Triple Pole MCB Type C, Curve B | (06A-63A)

by FuseBox
SKU MT10C063
£11.29

Description

The Triple Pole Miniature Circuit Breaker (MCB) Type C from Fusebox is a premium, small protective device made for light-industrial and commercial electrical distribution boards. It is perfect for installations with moderate inrush currents (such as small motors or fluorescent lighting) and offers dependable overload and short-circuit protection across three phases. The Type C tripping curve is particularly well-suited to control circuits with higher startup currents without causing nuisance tripping because it is made to trip between 5 and 10 times the rated current.

Key Features:

  • Rated Voltage: 400/415V AC, 50/60Hz

  • Number of Poles: Triple Pole (3P) for three-phase protection

  • Tripping Curve: Type C – ideal for general commercial and industrial applications

  • Conforms to Standards: IEC/EN 60898-1

  • DIN Rail Mountable: 35mm symmetrical DIN rail compatible

  • Short-Circuit Capacity: Up to 10 kA

  • Reliable Overload & Short-Circuit Protection: Ensures the safety of your installations

  • Compact Design: Fits neatly into Fusebox and most other standard boards

  • Easy Wiring and Installation: Large cage clamps for secure conductors

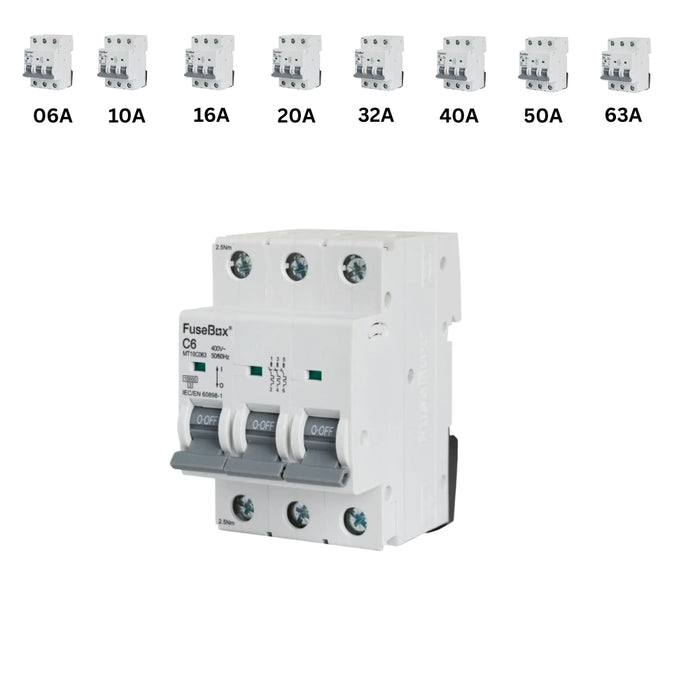

  • Wide Range of Amp Ratings: From 6A up to 63A

Product Code Amp Rating Key Usage Scenarios
MT10C063 6A Low-power circuits (lighting, control systems)
MT10C103 10A Slightly larger lighting circuits, small appliances
MT10C163 16A Typical small machines, shop power sockets
MT10C203 20A General commercial/industrial sockets, heaters
MT10C323 32A Workshop tools, medium appliances, EV charger spur
MT10C403 40A Larger commercial machines, sub-panel feeds
MT10C503 50A Heavy machines, larger power loads, and distribution circuits
MT10C633 63A High-demand machinery, main feed to sub-distribution boards
