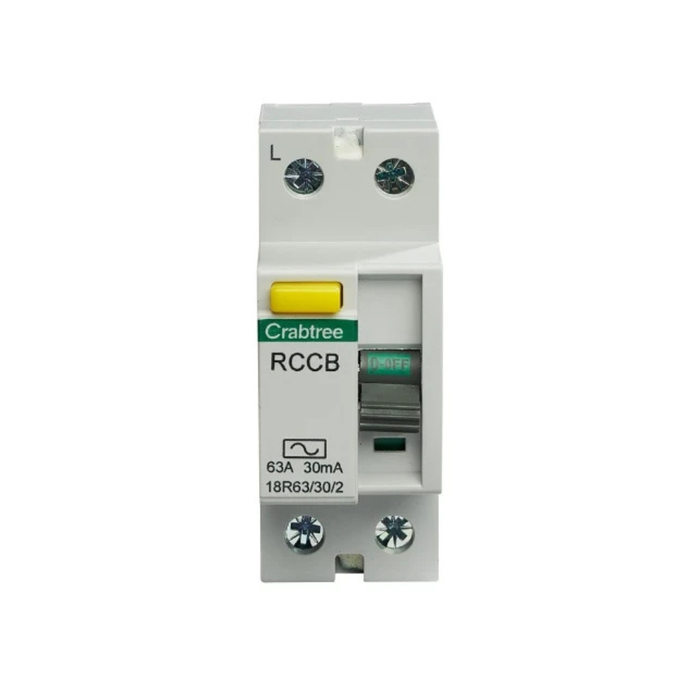

Crabtree 18R63/30/2 Loadstar 63A 30m 2 Pole Type-AC RCD

Crabtree 18R63/30/2 Loadstar 63A 30m 2 Pole Type-AC RCD

Crabtree 18R63/30/2 Loadstar 63A 30m 2 Pole Type-AC RCD

by Crabtree
SKU 18R63/30/2
£24.99

Description

The Crabtree 18R63/30/2 Loadstar is a robust residual-current device (RCD), designed to provide essential protection against earth leakage faults in domestic, commercial, and light industrial electrical installations. It forms part of Crabtree’s Loadstar family, offering reliable and compliant safety protection in modular switchgear systems.

NEW WITHOUT BOX

Technical specifications

Specification Value
Number of poles 2
Rated voltage 230 V
Rated current 63 A
Rated fault current 30 mA
Rated insulation voltage (Ui) 400 V
Rated impulse withstand voltage (Uimp) 4 kV
Mounting method DIN rail
Leakage current type AC
Selective protection No
Frequency 50 Hz
Additional equipment possible No
With interlocking device No
Degree of protection (IP) IP20
Width (number of modular spacings) 2
Connectable conductor cross section, multi-wired 50 mm²
Product standard(s) BS EN 61008
CE conformity Yes
WEEE symbol Yes
UKCA conformity Yes
