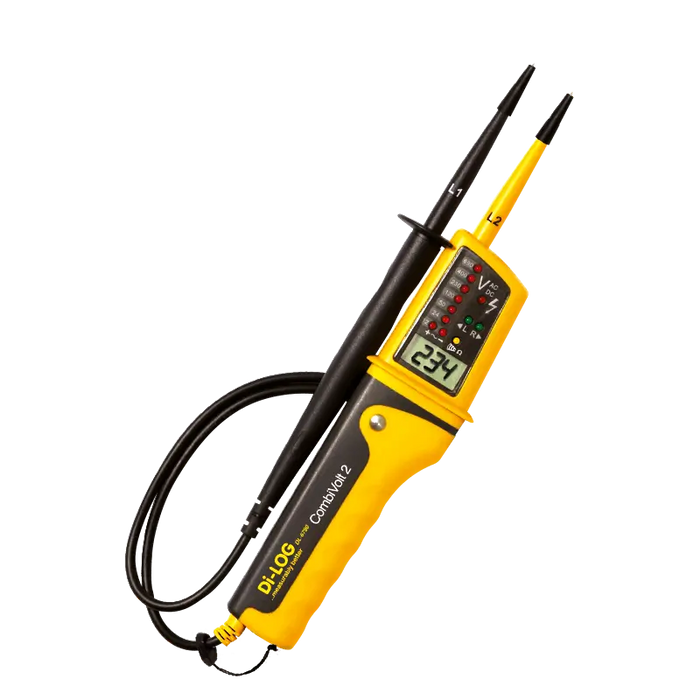

DiLOG Combivolt 2 - DL6790 Voltage & Continuity Tester

DiLOG Combivolt 2 - DL6790 Voltage & Continuity Tester

DiLOG Combivolt 2 - DL6790 Voltage & Continuity Tester

by Di-Log
SKU DL6790
£73.95

Description

The DiLOG CombiVolt 2 - Model DL6790 is a voltage & continuity tester with a digital display and LED indication. It also has a single probe voltage indication built into this rugged unit.

The CombiVolt 2 even has a built in torch function and continuity buzzer, both are great features if the light levels are low and you cannot see the display. The DiLOG CombiVolt 2 Model DL6790 is fully compliant with GS38 safety notice and it has a rugged hand held casing with a 24 month warranty, proving it great for everyday day use for electricians, technicians and maintenance staff.

The Di-LOG DL6790 can indicate voltages even when the batteries are flat or missing.

Key Features

  • Testing of AC/ DC voltages from 12 to 690 V AC/DC
  • Continuity testing with optical and acoustic indication
  • Automatic switching between voltage and continuity
  • Phase rotation test system
  • Single pole phase indication
  • Fully compliant with GS38
  • Fully operational voltage indication even when batteries are discharged
  • DL6790 with digital indication of voltage
  • Will not trip any RCD when testing across Live and Earth
  • Single pole detection when L2 probe connected above 100V

Specifications

Voltage display 12 – 690 V AC/DC
LED resolution 12, 24 , 50, 120, 230, 400, 690
LCD resolution 1 V +/- 3 % + 8 digits
Voltage detection Automatic
Acoustic signal AC voltage – DC voltage
Polarity detection Full range
Response time LED < 0.1s, LCD <2s
Frequency range 0 – 400 Hz
Peak current Is < 0.3 A / Is (after 5s) < 3.5 mA
Operation time 30s
Recovery time 10 min
Auto power on < 12 V AC/DC
Single pole
voltage indication
Voltage range 100 – 690 V AC
Frequency range 50 – 400 Hz
Continuity
Measuring range 0 – 400 KΩ
Phase rotation test
Voltage range 100 – 690 V
Frequency 45 – 65 Hz
Over voltage protection 690 V AC/DC g
Safety Standards CAT IV 600V
IEC 60529 (IP65), 61243-3
EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002+A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1
Power supply 2 x 1.5 V LR03 batteries
Dimensions 255 x 70 x 28 mm
Weight 200 g
