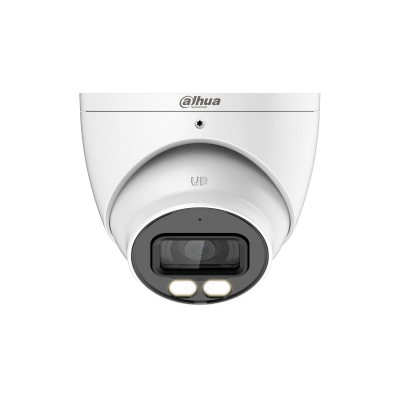

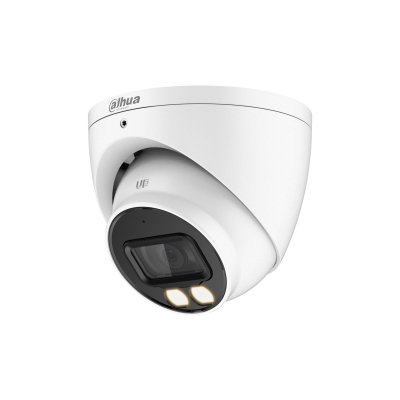

Dahua 5MP Smart Dual Light IR + LED Full-Colour Turret CVI Camera HDCVI Eyeball Camera with Mic (DH-HAC-HDW1509TP-IL-A)

The Dahua DH-HAC-HDW1509TP-IL-A is a 5MP HDCVI turret camera featuring smart dual light technology — combining IR and warm white LED illumination, each reaching up to 40m — with three selectable illumination modes to suit any monitoring environment. A maximum aperture of F1.0 delivers exceptional low-light performance, while 120dB WDR handles high-contrast and backlit scenes with ease. With a built-in microphone, multi-format output via a single BNC port, and IP67-rated metal housing operating from -40°C to +60°C, this camera offers outstanding flexibility as an upgrade or replacement across mixed analogue systems.

Key Features

• 5MP Resolution: Crystal-clear 2880×1620 imaging in 16:9 widescreen format for wide, detailed coverage.
• Smart Dual Light: IR and warm white LEDs each reaching up to 40m, with three selectable illumination modes — Smart IR & White Light, White Light only, or IR only.
• F1.0 Aperture: Maximum light gathering for outstanding low-light performance down to 0.001 lux in colour.
• 120dB WDR: Handles strong backlight and high-contrast scenes for consistently clear imaging.
• Built-in Microphone: Single-channel audio capture without the need for additional hardware.
• Multi-Format Output: CVI / TVI / AHD / CVBS switchable via a single BNC port for flexible compatibility across mixed analogue systems.
• 3D NR & Electronic Defog: Clean, sharp imaging in challenging weather and lighting conditions.
• IP67 Rated Metal Housing: Fully dust-tight and water resistant, operating reliably from -40°C to +60°C.
• Flexible Mounting: Suitable for wall, ceiling, or vertical pole installation.

Specifications

• Model / Part Code: DH-HAC-HDW1509TP-IL-A
• Type: HDCVI Turret Camera
• Sensor: 5MP CMOS
• Max Resolution: 2880 × 1620
• Min Illumination: 0.001 lux @ F1.0 (Colour) | 0.0001 lux @ F1.0 (B/W) | 0 lux (Illuminator On)
• S/N Ratio: >65dB
• WDR: 120dB
• Day/Night: Auto (ICR) / Colour / B/W
• Noise Reduction: 3D NR
• Defog: Electronic Defog
• Digital Zoom: 4x
• Lens Type: Fixed-Focal, M12 Mount
• Max Aperture: F1.0
• Focal Length Options: 2.8mm / 3.6mm
• Field of View (2.8mm): H: 111° / V: 57° / D: 131°
• Field of View (3.6mm): H: 89° / V: 47° / D: 104°
• Illumination Type: Smart Dual Light — IR + Warm White LED
• IR Distance: 40m
• Warm Light Distance: 40m
• Illumination Modes: Smart IR & White Light / White Light Only / IR Only
• Output Formats: CVI / TVI / AHD / CVBS via Single BNC Port
• Audio: Built-in Microphone, Single Channel
• Pan / Tilt / Rotation: 0°–360° / 0°–78° / 0°–360°
• Power Supply: 12VDC ±30%
• Max Consumption: 5.7W (12VDC, LED On)
• Casing: Metal
• Dimensions: Ø106.0mm × 93.6mm
• Net Weight: 0.49kg
• IP Rating: IP67
• Operating Temperature: -40°C to +60°C
• Operating Humidity: <95% RH, Non-Condensing
• Installation: Wall Mount / Ceiling Mount / Vertical Pole Mount

Box Includes

• Dahua DH-HAC-HDW1509TP-IL-A Turret Camera
• Mounting Hardware
• User Manual
