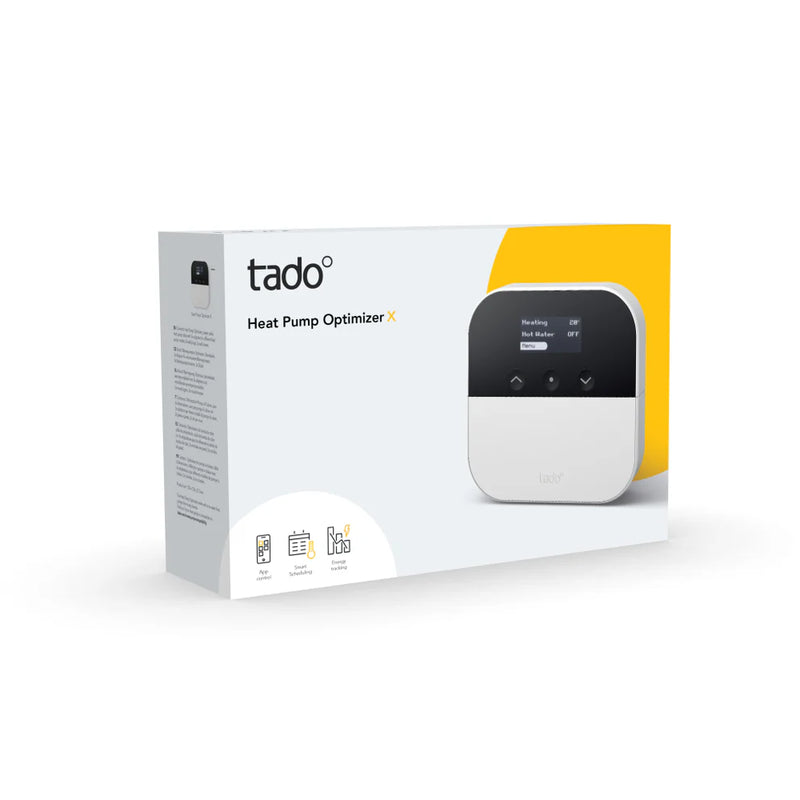

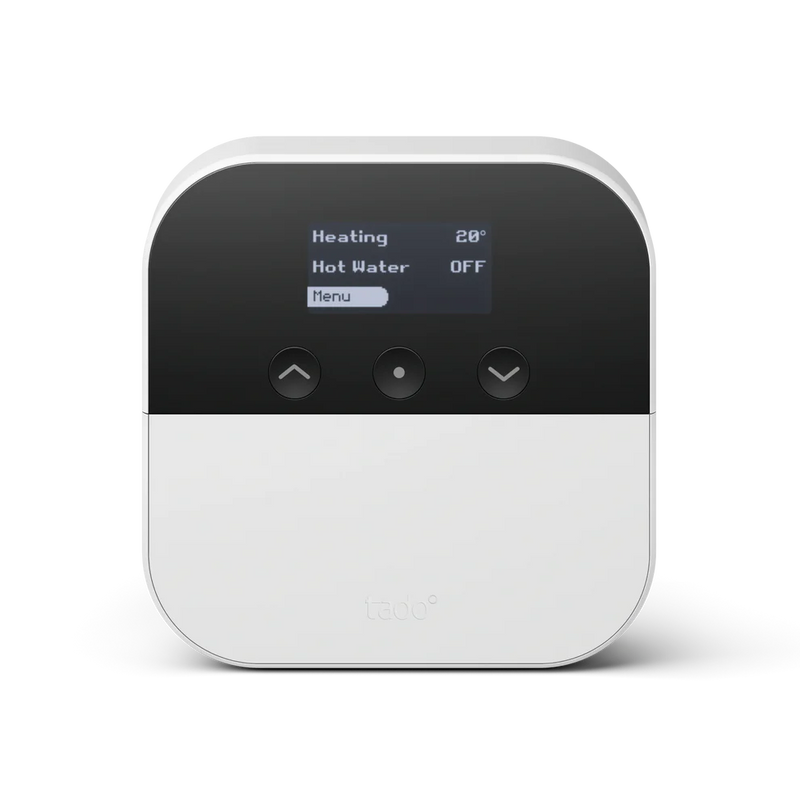

Tado Heat Pump Optimizer X — Smart Heat Pump Controller (White)

The Tado Heat Pump Optimizer X is an intelligent smart controller unit designed to deliver efficient, cost-effective energy management for heat pump systems. Compatible with air-to-water, water-to-water, and brine-to-water heat pumps from a wide range of manufacturers, it brings smart scheduling, remote temperature control, and energy monitoring to your heat pump — all from the tado° app. No room thermostat connection to the heat pump is required for operation.

Smart Energy Management for Heat Pumps The Heat Pump Optimizer X gives you full control over your heat pump via the tado° app. Set 7-day and 24-hour schedules, monitor energy usage, adjust temperatures remotely, and receive smartphone reminders to optimise your settings. Where a hot water tank is integrated or connected, the app also allows control of water temperature for complete home heating management.

Save Money with Tado Balance With the optional tado° Balance subscription, the Heat Pump Optimizer X can automatically run your heat pump when energy prices are at their lowest — helping you make the most of cheaper off-peak tariffs and reduce your overall energy costs without any manual effort.

No Bridge X Required The Heat Pump Optimizer X is a Thread border router, meaning it connects directly to your home network without the need for a separate tado° Bridge X. This simplifies installation and reduces the number of devices needed in your home.

Broad Compatibility and Smart Home Integration: Compatible with air-to-water, water-to-water, and brine-to-water heat pumps, and works with models from a wide range of manufacturers. Fully compatible with Amazon Alexa, Apple HomeKit, Google Home, Home Assistant, and Homey. Matter-enabled for future-proof smart home integration. Please note this product is not compatible with tado° V3+ products or older.

Key Features

• Smart controller unit for heat pumps
• Compatible with air-to-water, water-to-water, and brine-to-water heat pumps
• No room thermostat connection to heat pump required
• 7-day and 24 hour programmable schedules
• Remote temperature control and energy monitoring via tado° app
• Smartphone reminders to adjust temperature
• Optional tado° Balance subscription for off-peak energy price charging
• Thread border router — no tado° Bridge X required
• Hot water tank temperature control via app
• Frost protection and Holiday Mode
• Automatic BST/GMT change
• Matter-enabled for future-proof smart home compatibility
• Works with Amazon Alexa, Apple HomeKit, Google Home, Home Assistant, and Homey

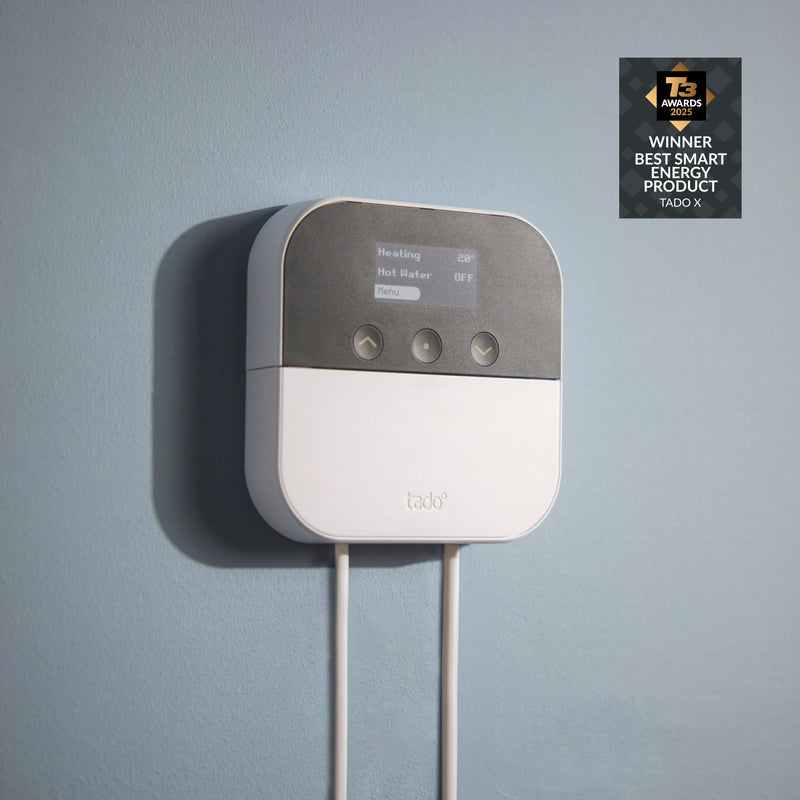

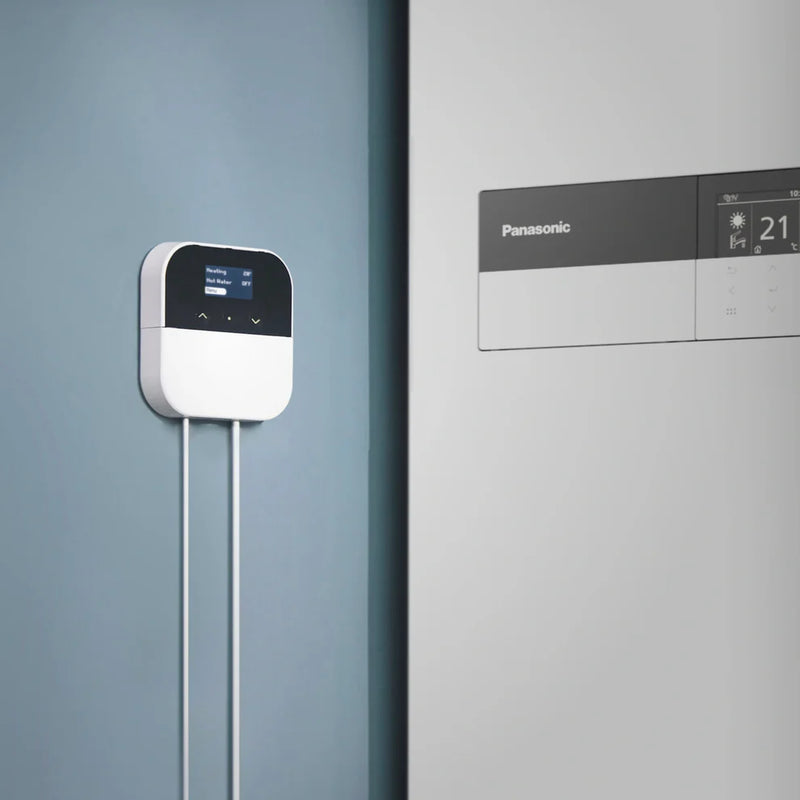

• Mains-powered, wall-mounted
• Not compatible with tado° V3+ products or older


Specifications

• Brand: Tado
• Model: X Heat Pump Optimiser
• Product Type: Smart Controller Unit
• Colour: White
• Communication Protocol: OpenTherm
• Compatible Heat Pump Types: Air-to-water, water-to-water, brine-to-water
• Control Operation: Digital
• Display Type: LCD
• ERP Control Class: Class IV
• Heating System Mode: Heating and Hot Water
• Programme Facility: 7 Day and 24 Hour Programmable
• Temperature Range: 5–25°C
• Sensor Type: Radiant Temperature
• Switching Type: SPDT
• Current Type: AC
• Thermostat Voltage: 230V
• Frequency: 50Hz
• Power Consumption: 46W
• Max Load (Inductive): 1A
• Max Load (Resistive): 3A
• Wiring: 2-Wire Installation
• Terminal Capacity: 1mm² to 2 × 2.5mm²
• Thermostat Mount Type: Wall-Mounted
• Thermostat Power Source: Mains-Powered
• IP Rating: IP00
• Frequency Band: 2.4GHz single-band
• Network Standards: WiFi
• Internet Connection: Required (cloud control)
• Smart Hub Required: Yes (built-in Thread border router — no Bridge X needed)
• Dimensions (H × W × D): 130mm × 130mm × 27.5mm
• Frost Protection: Yes
• Holiday Mode: Yes
• Automatic Time Change: BST/GMT
• Suitable for Underfloor Heating: Yes

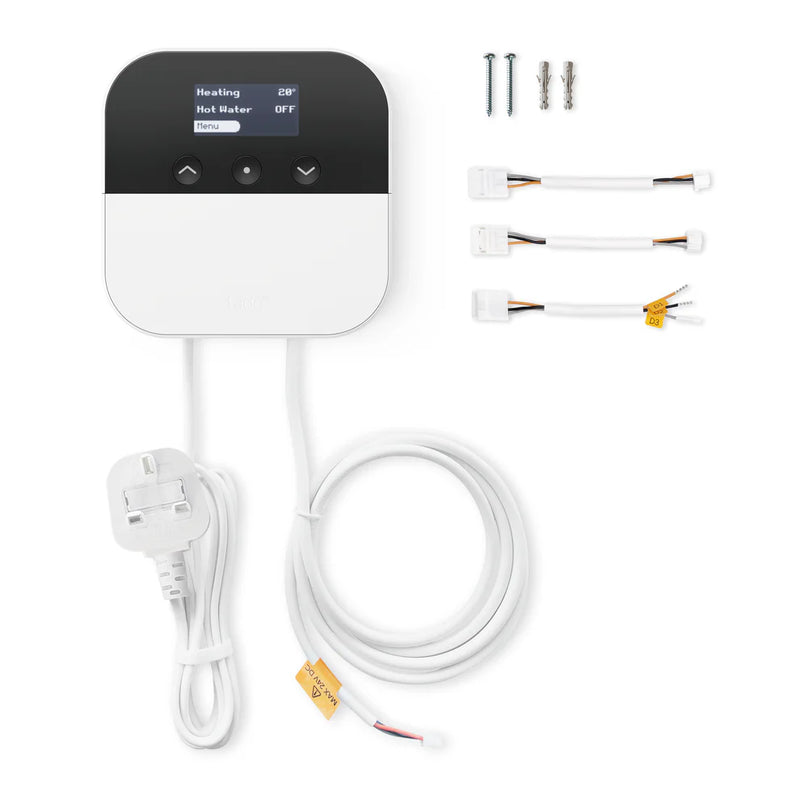

• Fixings Supplied: Yes
• Works with Matter: Yes
• Works with Amazon Alexa: Yes
• Works with Apple HomeKit: Yes
• Works with Google Home: Yes
• Works with Home Assistant: Yes
• Works with Homey: Yes
• Works with iOS App: Yes
• Works with Android App: Yes
• Pack Size: 1
• Manufacturer Guarantee: 1 year
