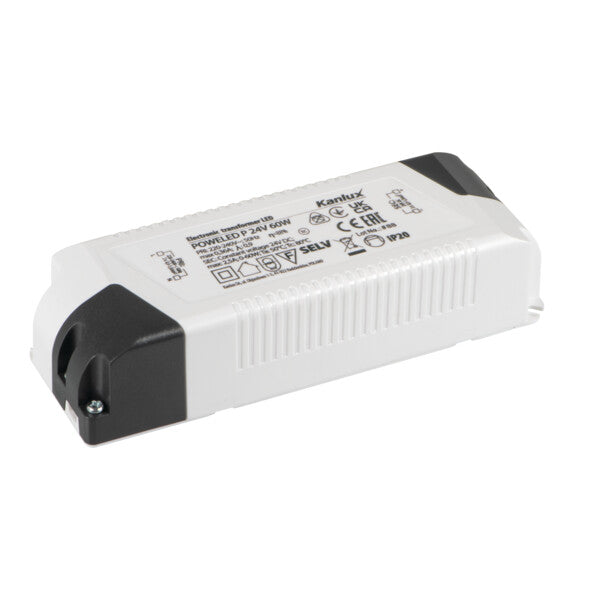

LED Power Supply for indoor use only. Is an electronic constant-voltage power supply unit used to power LED belts such as LEDS P or LEDS B.
| General description | EAN13: 5905339268167 |
|---|---|
| Colour: white | |
| Material: plastic | |
| Weight and dimensions | Height [mm]: 36 |
| Width [mm]: 54 | |
| Length [mm]: 157 | |
| Weight: 212g | |
| Sales unit: piece | |
| Outer box: 50 | |
| Additional features | The power supply unit is not designed to work without load. |
| Technical data | Rated voltage [V]: 220-240 AC |
| Rated frequency [Hz]: 50 | |
| Colour: white | |
| Supply-cord type: constant-voltage | |
| Maximum power [W]: 1-60 | |
| Input voltage - PRI [V]:220-240 | |
| Output voltage - SEC [V]:24 DC | |
| Output current - sec [ma]:max 2500 | |
| Tc [°C]:80 | |
| Maximum temperature Ta [°C]:50 | |
| Short-circuit protection:1 | |
| Possibility of installation on a normally flammable surface:yes | |
| IP class:20 | |
| Class of protection against electric shock:1 | |
| Short-circuit protection:II | |
| Connection type:Terminal block | |
| Range of sections of wires used [mm2]:0,5-1,5 | |
| Ambient temperature range to which the product can be exposed:5÷25 |
