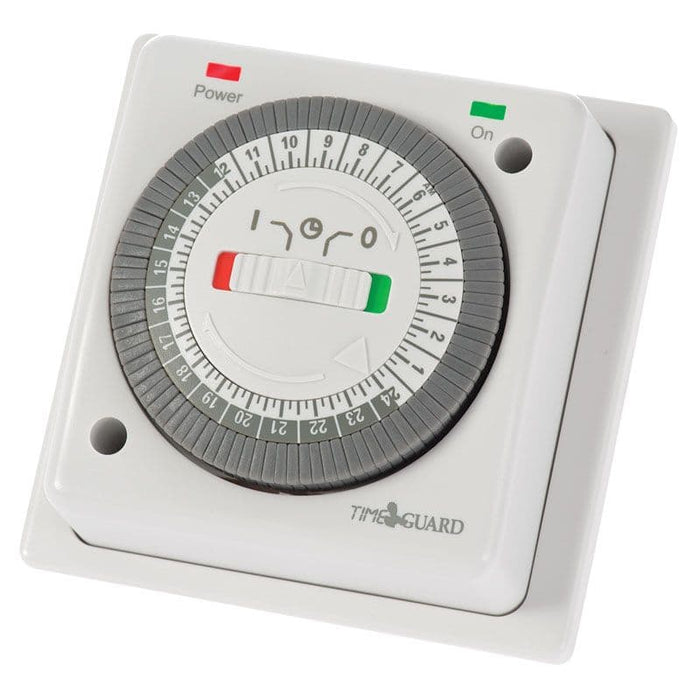

Introducing the New range of Compact Timeswitches from Timeguard!
- 16(6)A load rating.
- 96 quick-set segments for up to 48 ON/48 OFF programmes.
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
- Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.
- Switches ON and OFF at preset times.
- Easy to use captive segment dial.
- Permanent ON/OFF control.
- Fits a standard flush or surface mount box min. 32mm deep.
| Timer Mode |
24 Hour |
| Setting Type |
Segment |
| Operating Voltage |
230V AC |
| Switch Rating 230V AC |
16A Resistive (3.68kW), Inductive 6A |
| Stand-alone LED Rating |
100W |
| Operating Temperature |
0°C to +40°C |
| Cable Connection |
1.5 – 2.5mm2 Flexible Cable |
| EC Directives |
Conforms to Latest Directives |
| Dimensions (mm) |
Height 92, Width 92, Depth 60 |
