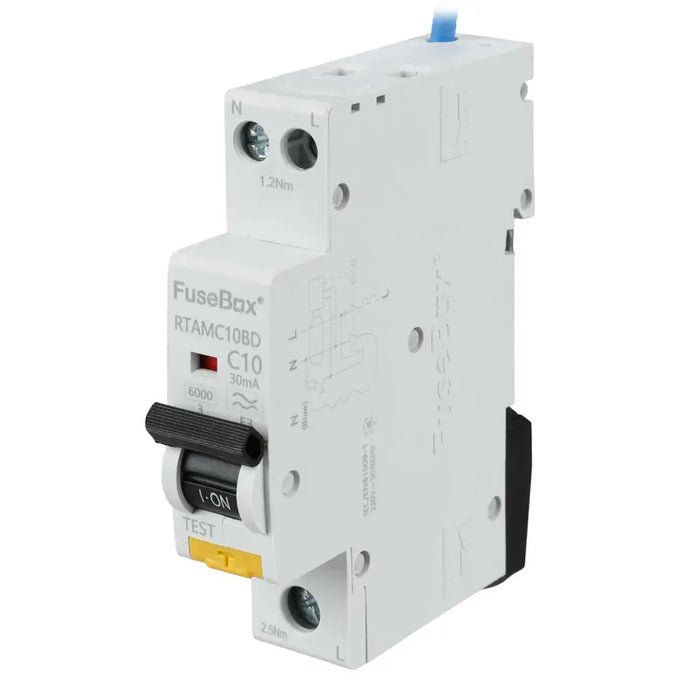

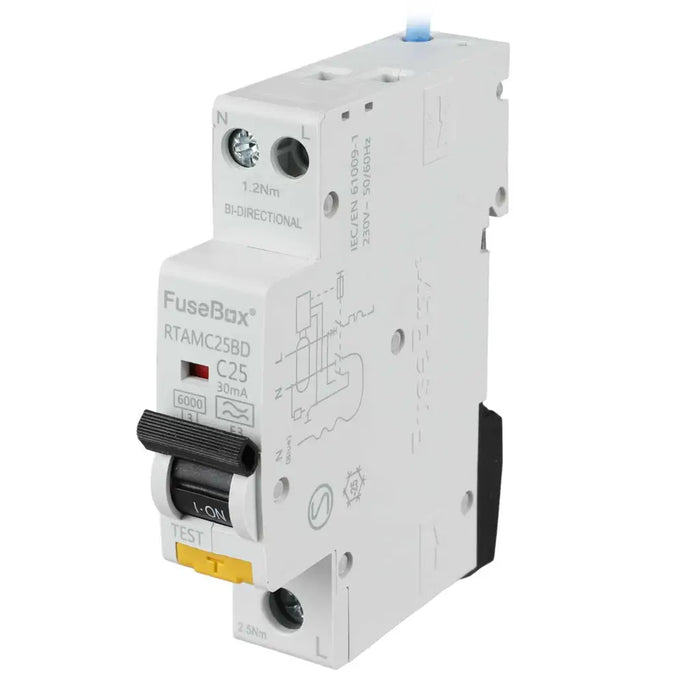

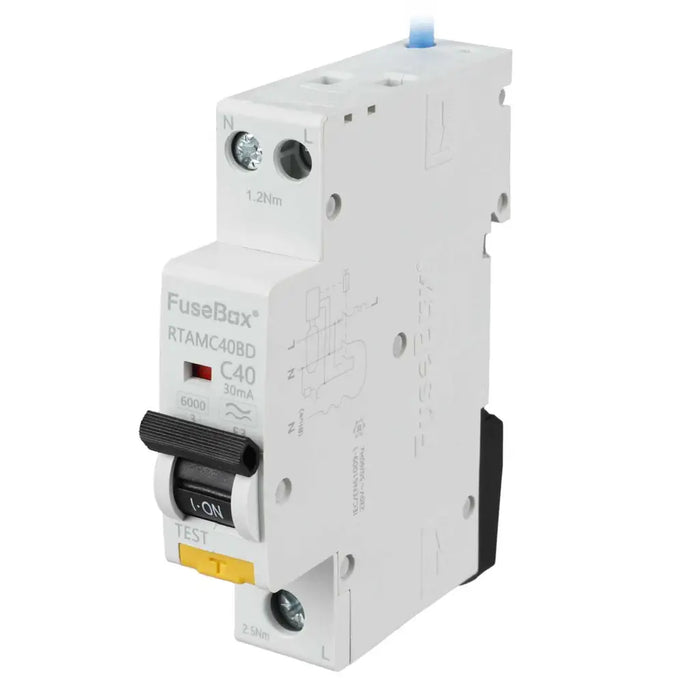

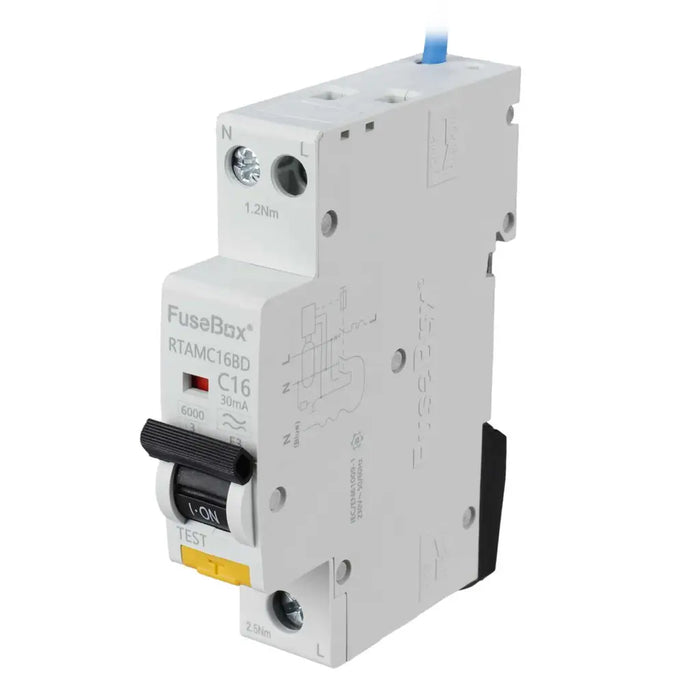

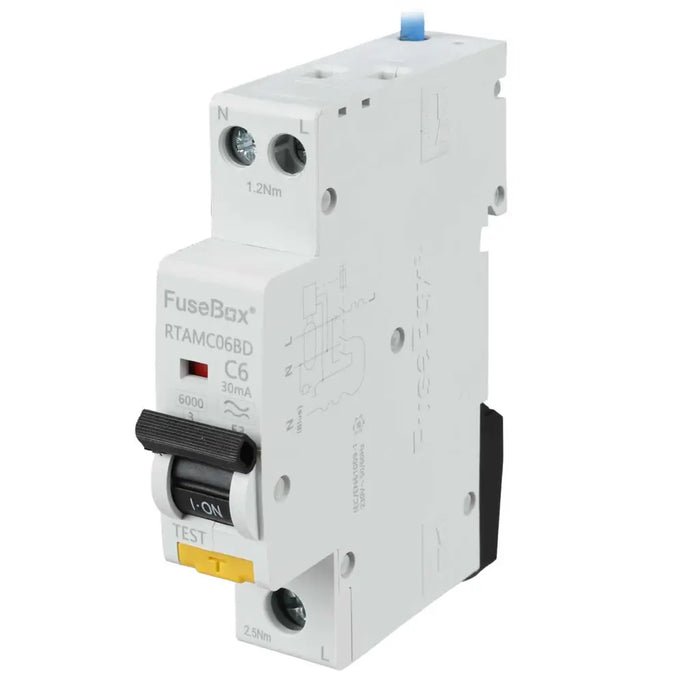

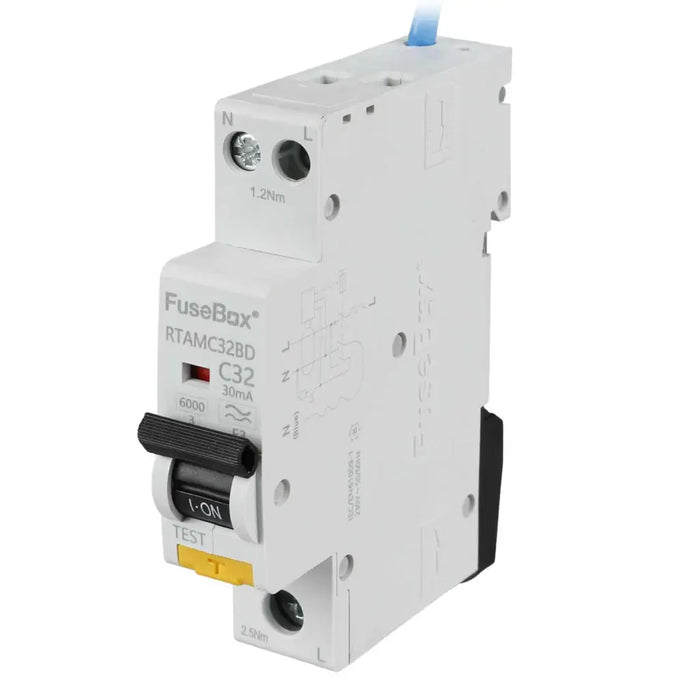

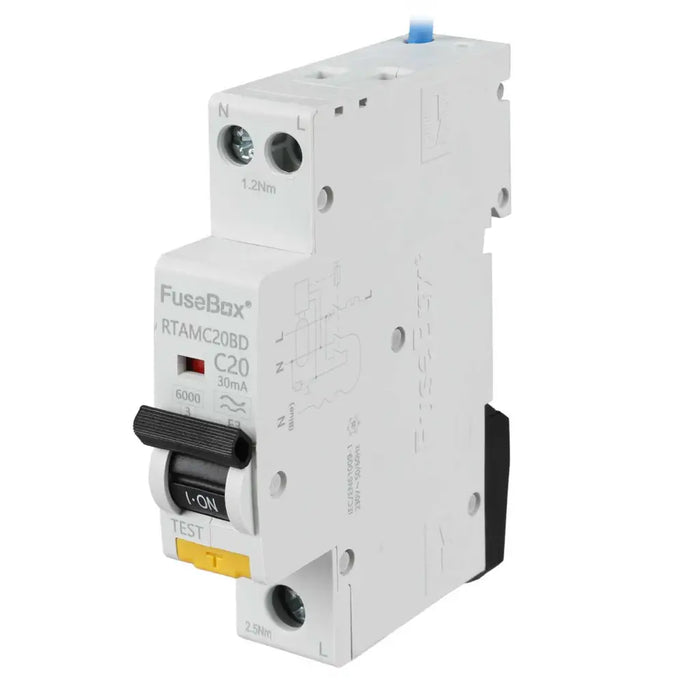

FuseBox RCBO Type A 30mA 6kA – C Curve (6A to 40A) | Bi-Directional Series

FuseBox RCBO Type A 30mA 6kA – C Curve (6A to 40A) | Bi-Directional Series

FuseBox RCBO Type A 30mA 6kA – C Curve (6A to 40A) | Bi-Directional Series

by FuseBox
SKU RTAMB32BD-4
£17.95

The FuseBox RTAMC Series is a premium range of Type A Bi-Directional C Curve RCBOs designed for domestic and light commercial applications. Offering combined overload, short-circuit, and residual current (earth leakage) protection, these devices provide a reliable and compact solution for modern installations, especially where electronic and inductive loads are present.

Key Features

  • RCBO Type A
    Detects AC and pulsating DC earth leakage faults—ideal for modern appliances such as EV chargers, LED lighting, washing machines, etc.

  • C Curve Tripping
    Suitable for circuits with higher inrush current, such as motor-driven or inductive loads (e.g., air conditioners, power tools).

  • Bi-Directional (Line/Load Interchangeable)
    No need to worry about line/load orientation—faster and safer installation.

  • Compact 1-Module Design
    Saves valuable space inside the consumer unit.

  • 6kA Breaking Capacity
    Ideal for domestic installations conforming to common fault current requirements.

  • Double Pole Switching
    Fully disconnects both live and neutral—essential for TT systems.

  • Visual Trip Indicator & Lockable Toggle
    Easy status identification and optional lockout for maintenance safety.

  • Compliant with BS EN 61009-1
    Meets the latest safety and quality standards.

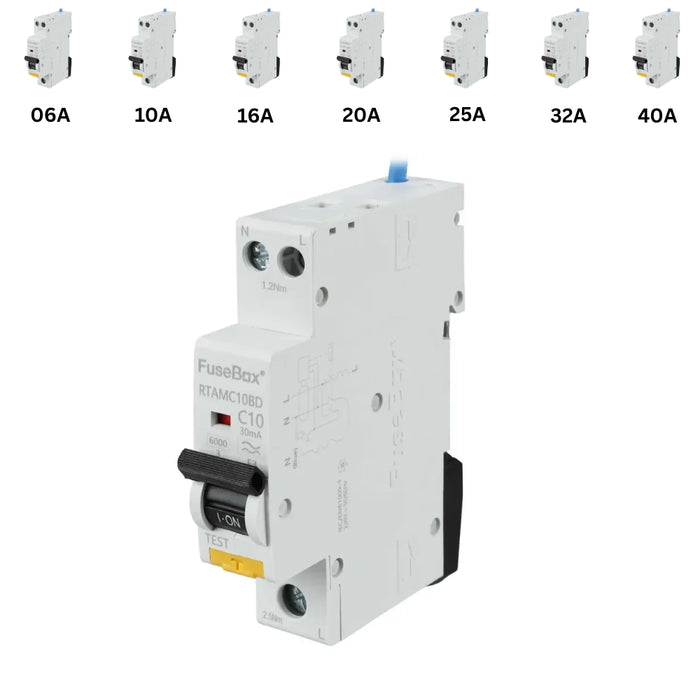

Model Variations & Comparison

Model Rating (A) Tripping Curve Breaking Capacity Earth Leakage
RTAMC06BD 6A Type C 6kA 30mA
RTAMC10BD 10A Type C 6kA 30mA
RTAMC16BD 16A Type C 6kA 30mA
RTAMC20BD 20A Type C 6kA 30mA
RTAMC25BD 25A Type C 6kA 30mA
RTAMC32BD 32A Type C 6kA 30mA
RTAMC40BD 40A Type C 6kA 30mA

Please select a variant
