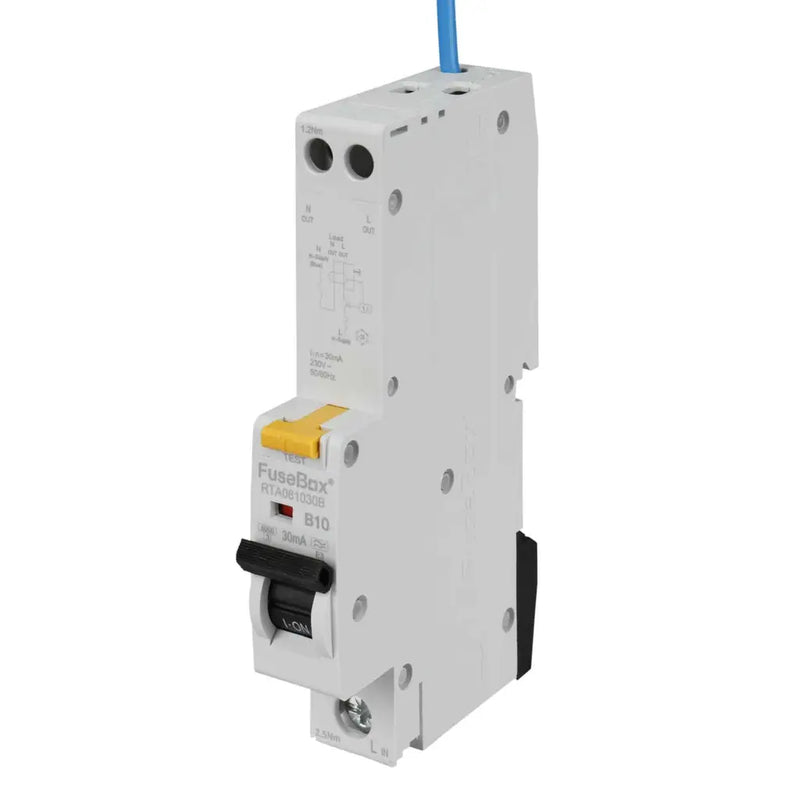

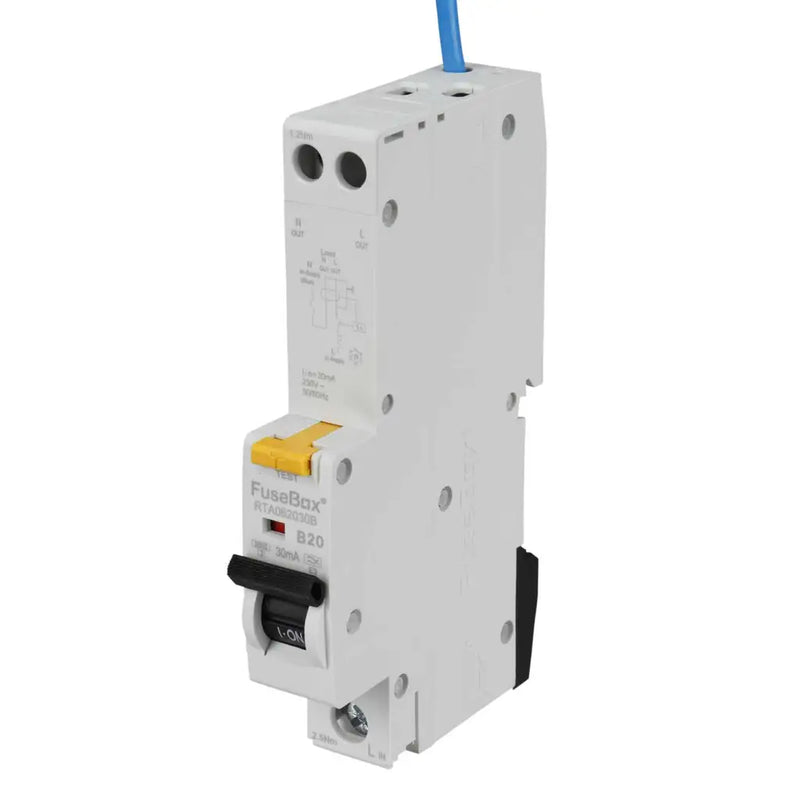

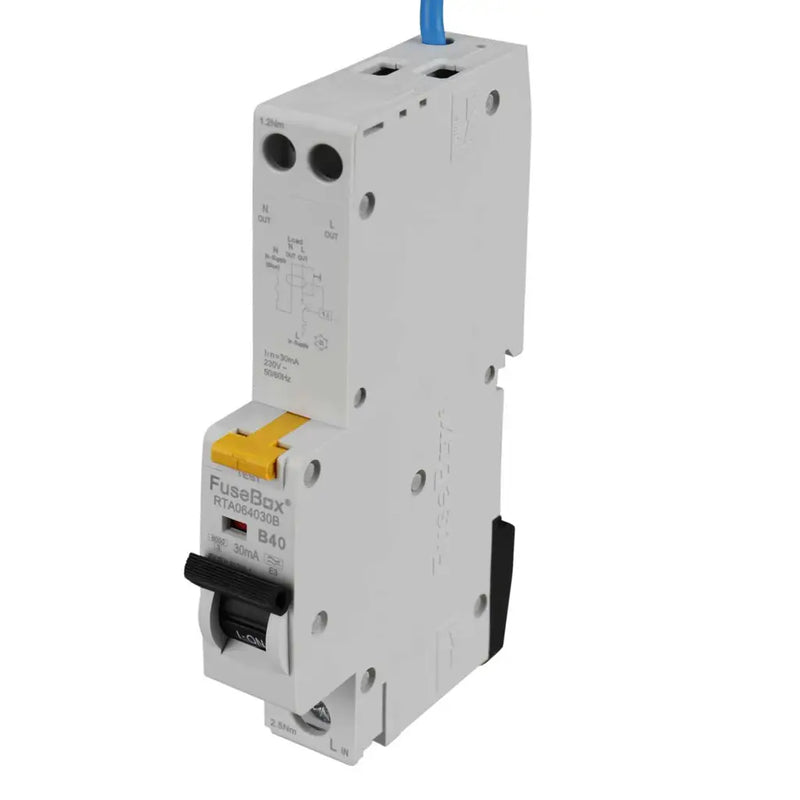

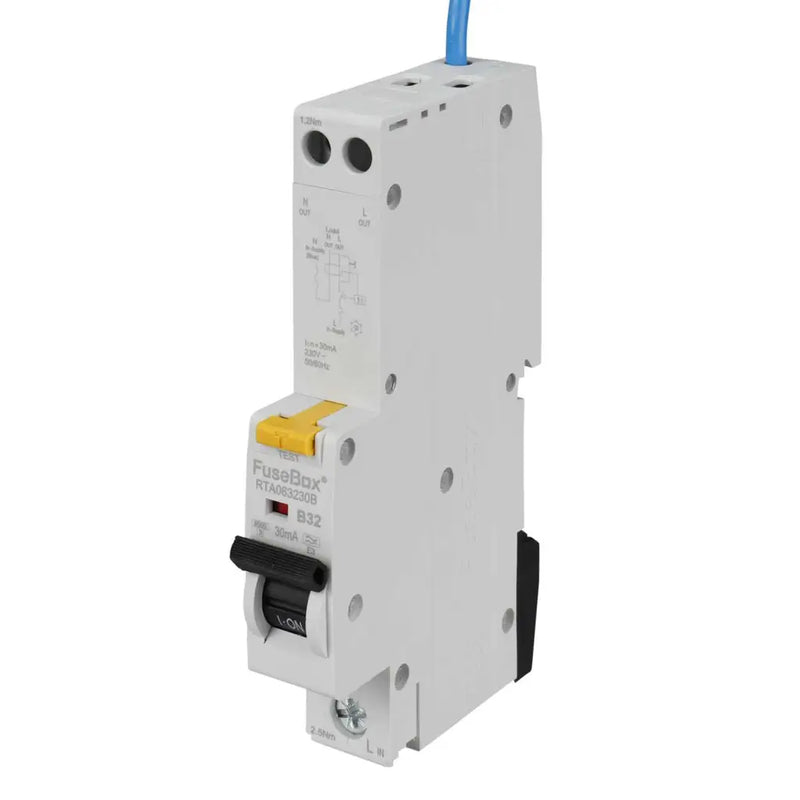

FuseBox Long RCBO – Type A, B Curve (6kA–50kA) | RTA Series

FuseBox Long RCBO – Type A, B Curve (6kA–50kA) | RTA Series

FuseBox Long RCBO – Type A, B Curve (6kA–50kA) | RTA Series

by FuseBox
SKU RTA060630B
£10.95

Description

The FuseBox RTA Series RCBOs are premium products employed in domestic and commercial settings. By utilizing earth leakage and overcurrent protection in a space-saving enclosure, such Type A RCBOs conveniently identify AC and pulsating DC residual currents. The B-curve feature protects a range of load patterns, making them ideal to use with lighting and general-purpose circuits. With a short-circuit breaking capacity rating of 6kA and a class 3 energy limitation rating, the RTA Series provides robust protection, ensuring a secure and compliant electrical installation.

Key Features

  • Integrated Protection: Residual Current Device (RCD) combined with Miniature Circuit Breaker (MCB) in one compact unit.

  • Type A: Sensitive to AC and pulsating DC earth faults, making it suitable for equipment with electronics.

  • B Curve Tripping: Protects resistive and slightly inductive loads (such as lighting, heating, and general equipment).

  • Short Circuit Capacity: Rated from 6kA to 50kA (according to manufacturer specifications), ensuring protection in a range of installation conditions.

  • Single Module Width: Enables space-saving installations in consumer units and distribution boards.

  • Rated Voltage: 230V AC (Single Phase).

  • Compliance: Designed and tested to IEC/EN 61009 standards for quality and safety.

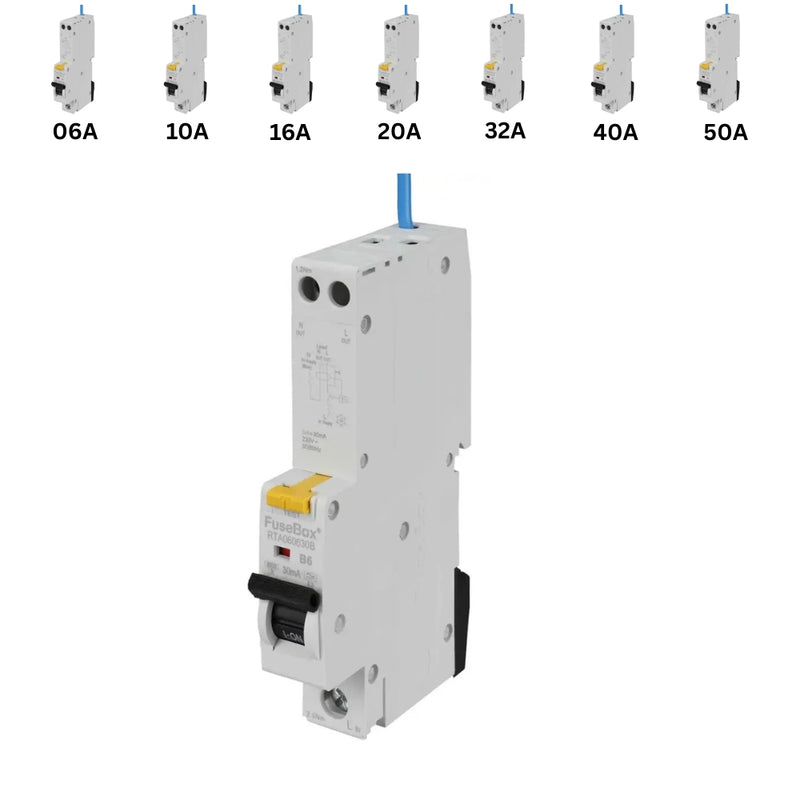

Part Number Rated Current Tripping Curve Short Circuit Capacity
RTA060630B 6A B Curve 6kA–30kA
RTA061030B 10A B Curve 6kA–30kA
RTA061630B 16A B Curve 6kA–30kA
RTA062030B 20A B Curve 6kA–30kA
RTA063230B 32A B Curve 6kA–30kA
RTA064030B 40A B Curve 6kA–30kA
RTA065030B 50A B Curve 6kA–30kA
Please select a variant
