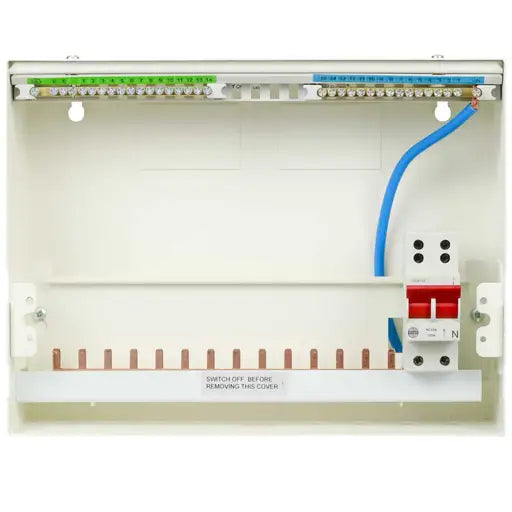

Wylex Metal 14 Way Consumer Unit 100A C/W/ SPD
14W Main switch only consumer unit. Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly. Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs. Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1. Constructed from a full metal enclosure with curved visor and temporary locking facility.
-100A incoming isolator fitted
-Amendment 3 compliant
-Non-combustible enclosure
Specifications:
|
Brand |
Wylex |
|
Compliance |
BSEN61439-3 |
|
Current Rating |
100A |
|
Depth |
121mm |
|
Dimensions |
(H)261mm (W)343mm (D)121mm |
|
Guarantee |
1 Year |
|
Height |
261mm |
|
Incoming Device |
100A Isolator |
|
Material |
Metal |
|
Mounting |
Surface |
|
Number of Modules |
16 |
|
Number of Outgoing Ways |
14 |
|
Packaging Types |
Each |
|
Product Range |
NM Metal |
|
Surge Protection Fitted |
No |
|
Surge Protection Ready |
No |
|
Unspsc V18 |
39121110 |
|
Voltage Rating |
230V |
|
Weight |
4.1kg |
|
Width |
343mm |
|
IP Rating |
IP2X |
