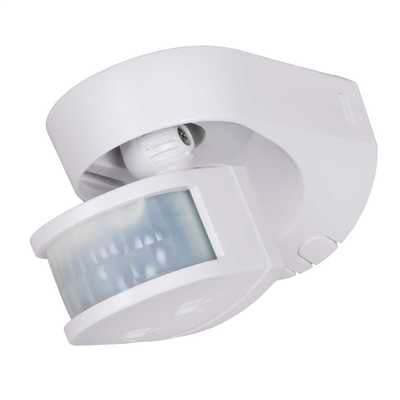

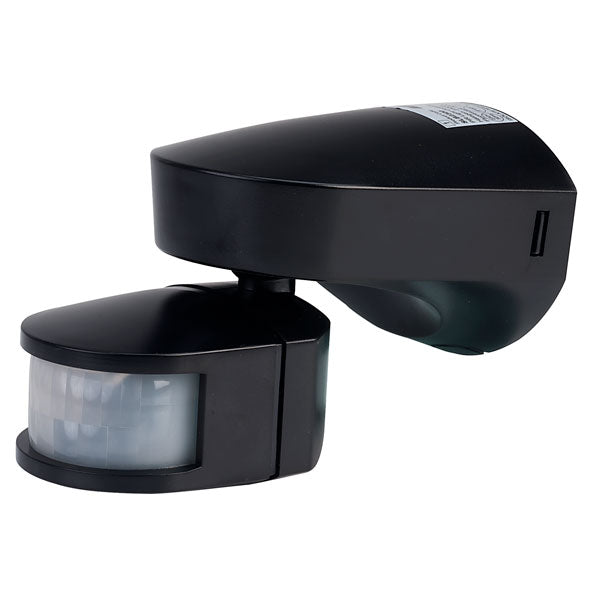

Powerful PIR controller for new and existing installations.

  • Total PIR switching: 2300W incandescent/halogen, 500W fluorescent/low energy plus 250W LED.
  • 12m detection range with 180º area of detection.
  • Pan and tilt feature.
  • Light ON times adjustable from 5 seconds to 15 minutes.
  • LUX (light level) adjustment – Day to Night (2 to 1000).
  • Manual ON/OFF switching override.
  • IP55 weatherproof rating.
  • Simple and quick to fit terminal block connectors.
  • Dimensions: 95 x 78 x 141mm.
Operating Voltage 230V AC
Lamp Load (W) Fluorescent/Low Energy 500, Filament 2300, LED 250
Weatherproof Rating IP55
Detection Range (Max) Metres 12
Angle of Detection 180º
Light ON Time After Last Detection (Adjustable) 5 Seconds (Min), 15 Minutes (Max)
Permanent ON Facility Electronic
Adjustable Light Level Control Yes
EC Directives Conforms to Latest Directives
Overall Dimensions (mm) Height 95, Width 78, Depth 141

>>>>
