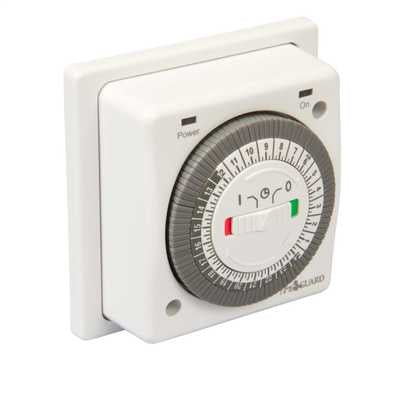

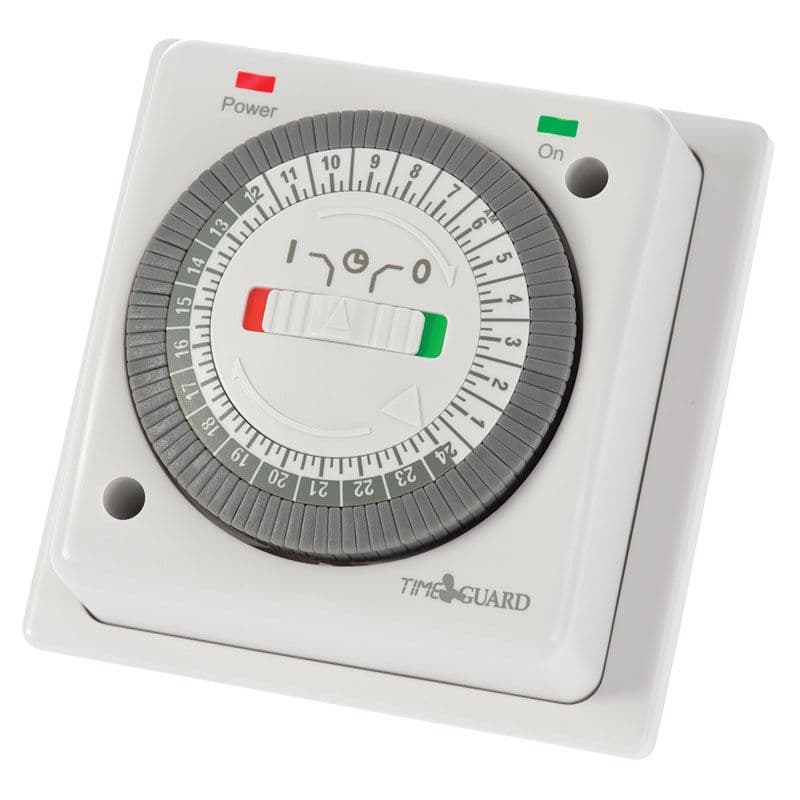

Introducing the New range of Compact Timeswitches from Timeguard!

  • 16(6)A load rating.
  • 96 quick-set segments for up to 48 ON/48 OFF programmes.
  • Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
  • Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.
  • Switches ON and OFF at preset times.
  • Easy to use captive segment dial.
  • Permanent ON/OFF control.
  • Fits a standard flush or surface mount box min. 32mm deep.
Timer Mode 24 Hour
Setting Type Segment
Operating Voltage 230V AC
Switch Rating 230V AC 16A Resistive (3.68kW), Inductive 6A
Stand-alone LED Rating 100W
Operating Temperature 0°C to +40°C
Cable Connection 1.5 – 2.5mm2 Flexible Cable
EC Directives Conforms to Latest Directives
Dimensions (mm) Height 92, Width 92, Depth 60

>>>>
