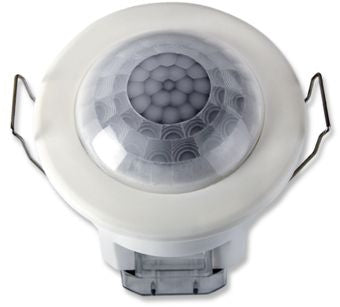

Timeguard take PIR Presence Detection to the next level for optimum coverage and with up to 1500W loading and 10m detection range this powerful unit is the ideal choice for all energy saving installations.
- Switches lights ON when presence is detected and to light level (LUX) settings.
- Ideal for energy saving installations in the workplace, corridors, offices, toilets etc.
- Up to 1500W loading (6A) for incandescent, halogen, fluorescent and inductive lighting or 250W (1A) fan.
- Units can be wired in parallel (not exceeding total load).
- Enhanced 360° detection zone for optimum coverage.
- Up to 10m detection range for motion and 3m for presence detection at 3m mounting height.
- User-friendly adjustment for:
* Light level – 5 to 1000 LUX
* Time ON – 1 to 30 minutes.
- IP44 environmental rating (internal use only).
- Requires a 63mm or 64mm diameter installation hole cut-out.
- Instructions and fixing accessories in box.
- Dimensions: 72mm Ø x 68mm.
- Up to 420W LED (Max) lighting.
| Operating Voltage |
230V AC |
| 1 or 2 Channel |
1 Channel |
| 1st Channel Filament/Halogen Loading (W) |
1500 |
| 1st Channel Fluorescent/Low Energy Loading (W) |
1500 |
| Weatherproof Rating |
IP44 |
| Detection Range (Max) Metres |
10m motion, 3m presence |
| Angle of Detection |
360º |
| Light ON Time After Last Detection (Adjustable) |
30 Minutes |
| Permanent ON Facility |
Electronic |
| Adjustable Light Level (LUX) Control |
5 to 1000 LUX |
| LED (Max) Lighting |
Up to 420W |
| EC Directives |
Conforms to Latest Directives |
| Overall Dimensions (mm) |
Diameter 71, Depth 76.2 |
