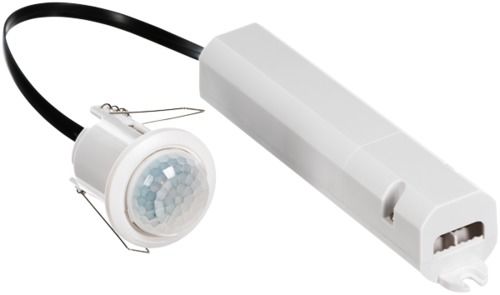

Timeguard PDFMMINIL 360° Flush Mount Linkable Mini PIR Sensor

SKU PDFMMINIL
£45.95
  • checkmark
    Family-run, Birmingham-based business
  • checkmark
    Quick dispatch across the UK
  • checkmark
    Trade and retail welcome

Guaranteed Safe & Secure Checkout
  • Apple Pay
  • Google Pay
  • PayPal
  • Shop Pay

The Timeguard PDFMMINIL 360° Flush Mount Linkable Mini PIR Sensor is a compact, high-performance motion detection solution designed for intelligent lighting control in modern residential and commercial spaces. With a discreet flush-mount design and 360° coverage, it ensures precise occupancy sensing while maintaining a clean ceiling finish.

Key Features :

  • 360° PIR Detection: Full circular coverage for reliable motion and presence sensing
  • Dual Detection Range: 3m presence detection and up to 8m motion detection (at 2.5m mounting height)
  • Linkable System: Supports up to 5 slave units via RJ11 connection for extended coverage
  • Smart Lighting Control: Adjustable LUX (10–2000) and time delay (30 sec to 30 min) settings
  • Manual Override Mode: Double pulse activation provides 6-hour continuous ON function
  • Easy Installation Design: Twist & Lock mechanism with flush ceiling mounting for quick setup
  • Energy Efficient Load Handling: Supports LED/CFL up to 250W and halogen up to 2300W
  • Installation Convenience: Includes masking kit, LED indicator, and pre-wired 5m RJ11 cable

Specifications :

  • Product Type: 360° Flush Mount Mini PIR Sensor (Master Unit)
  • Sensor Type: Passive Infrared (PIR)
  • Detection Angle: 360°
  • Detection Range: 3m presence / 8m motion (2.5m height)
  • Load Rating: Halogen max 2300W, LED/CFL max 250W
  • LUX Adjustment: 10–2000 LUX
  • Time Adjustment: 30 seconds – 30 minutes
  • Connectivity: RJ11 plug-in linkable system (up to 5 slave units)
  • Mounting Type: Flush ceiling mount (Twist & Lock)
  • Cut-out Size: 40mm
  • PIR Dimensions: Height 64mm, Diameter 47mm
  • Power Box Dimensions: 175mm (W) x 35mm (H) x 35mm (D)
  • IP Rating: PIR IP40 / Power Box IP20
  • Accessories: Masking kit included
