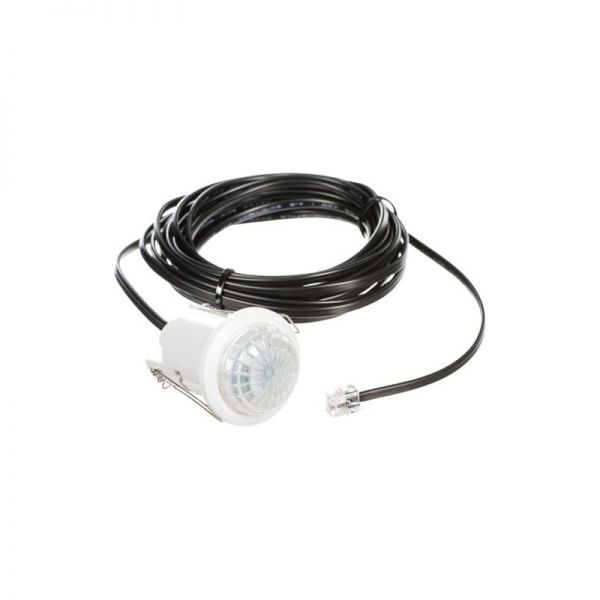

For use with the Timeguard PDFMMINIL 360° Flush Mount Linkable Mini PIR Sensor.  Up to 5 slaves can be connected to one PDFMMINIL master unit.

  • Small 47mm diameter body.
  • Unique twist & lock body.
  • Up to 5 plug & play slave units can be added.
  • Ideal for corridors.
  • Up 8m diameter detection range.
  • Presence detection.
  • Pre-installed 5m lead.
Class Rating Class 3
Weatherproof Rating IP40
Operating Temperature -20°C to +40°C
Motion Detection Range 8m Diameter at a 2.5m mounting height
Presence Detection Range 3m Diameter
Angle of Detection 360°
Time ON Adjustment 30 Seconds to 30 Minutes
Warm-up Time 60 Seconds
PIR Sensor Connection Cable Pre-fitted 2500mm long cable with an RJ11 connector
Ceiling Cut-out 40mm Diameter hole
Overall Dimensions 47mm Diameter body, 64mm height
EC Directives Conforms to latest directives

>>>>
