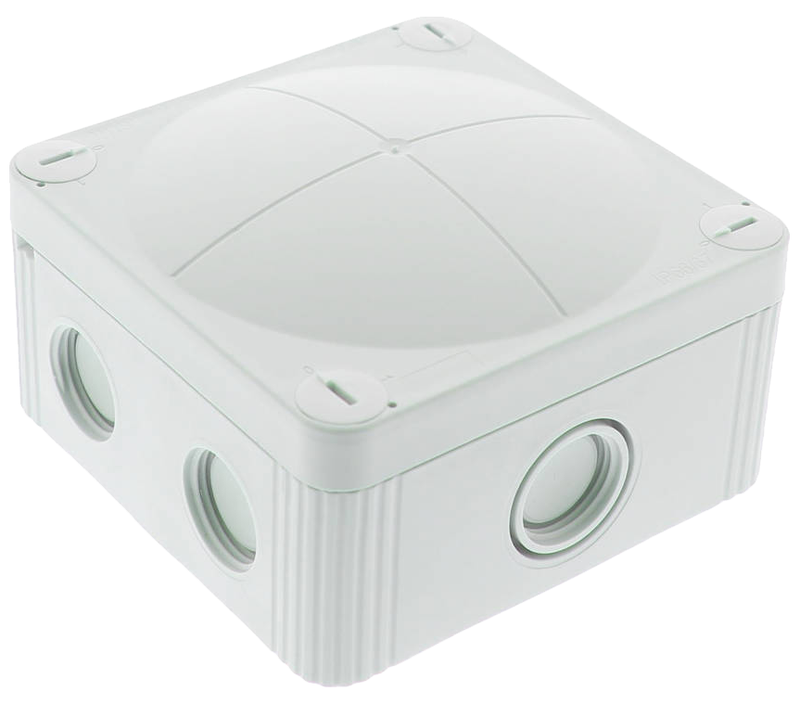

Wiska 10105596 COMBI 407/5 LG Junction Box

Remarks:

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
- 2 membrane cable entries through rear
- 4 captive cover screws
- including mounting clip
- with terminal block 5-poles, 4mm²

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C - 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	690 V
Rated current / A (Terminal)	32 A
Rated cross section	4 mm²
Terminals/poles	5-pole, 4,0 mm²
Fixing	4 internal openings
Ø cable diameter min	3 mm
Ø cable diameter max	12 mm
External dimensions LxWxH	95 x 95 x 60mm
Type of cable gland	M 20 x 1,5, M 25 x 1,5
Using for cable gland
Product Color	RAL 7035
WISKA-Order no.	10105596
Type	COMBI 407/5 LG
Packing unit	5
ETIM-Classification	EC002600
